Sauna Usinsh III

Price

23 353
EUR / 19 300 EUR + VAT

Initially Usinsh was created as a traditional Latvian wet sauna for rituals that are performed by a sauna master. It’s been made in such a way that it is an ergonomic workspace for the master, all the while the comfort of a typical sauna visitor has been kept in mind. The free-standing lover benches can be either moved under the upper benches or used as a footrest in a seated position.

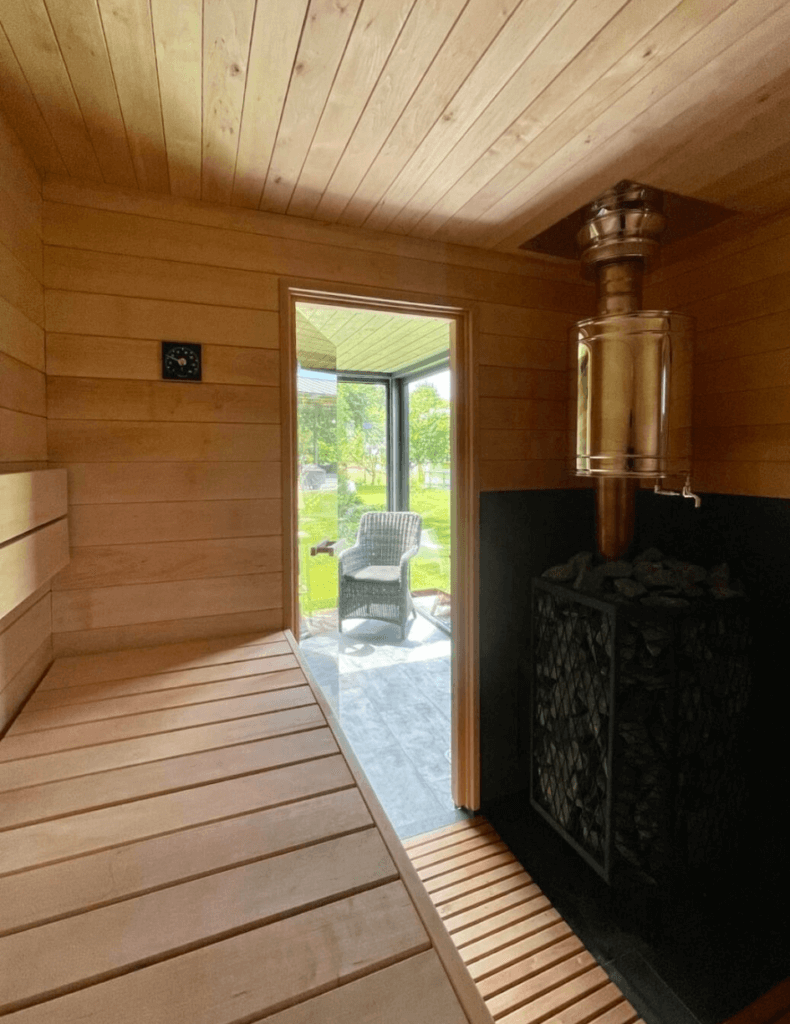

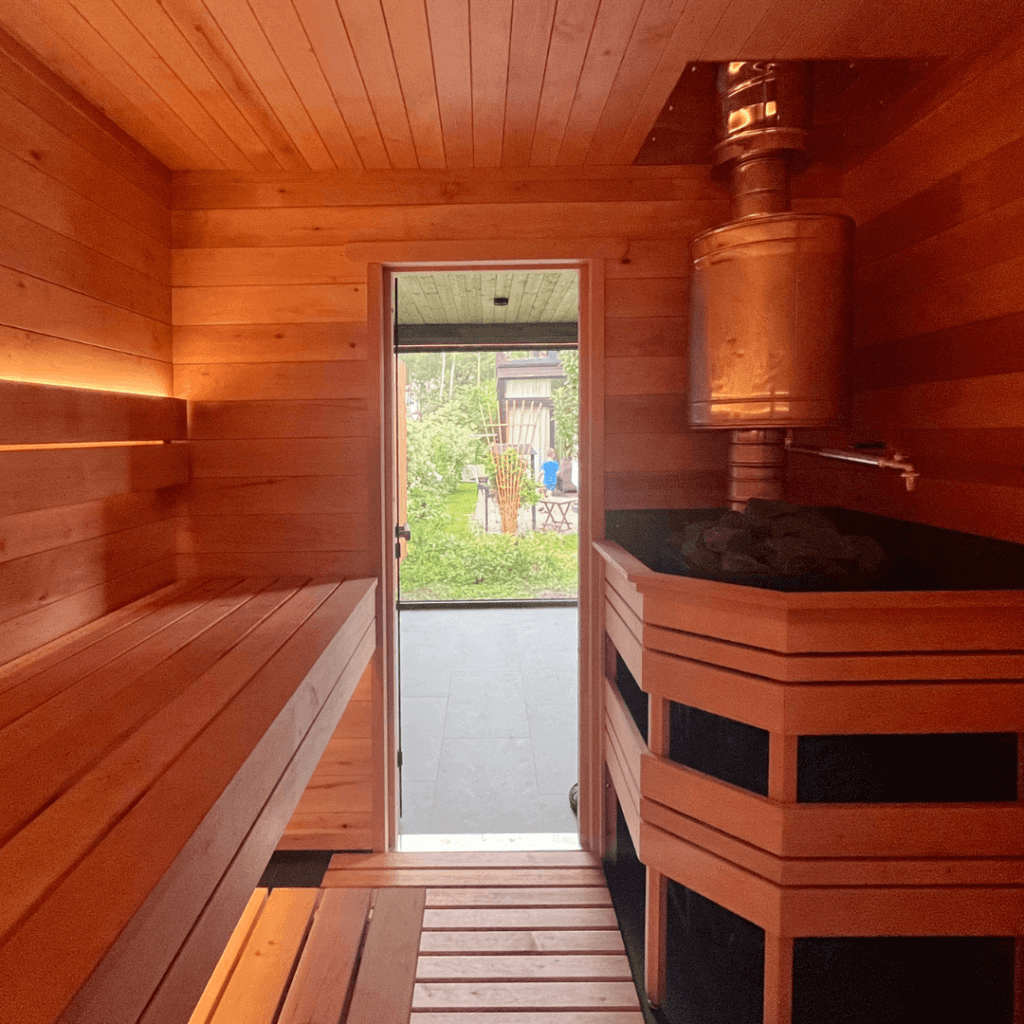

If Latvian wet sauna traditions are close to your heart, Usinsh is the way to go. We have designed and created the heating room benches in the optimum height and width for working with sauna brooms. An important note for those who like to use sauna brooms and body scrubs in the sauna: the flooring solution is chosen to make the clean-up easy and quick.

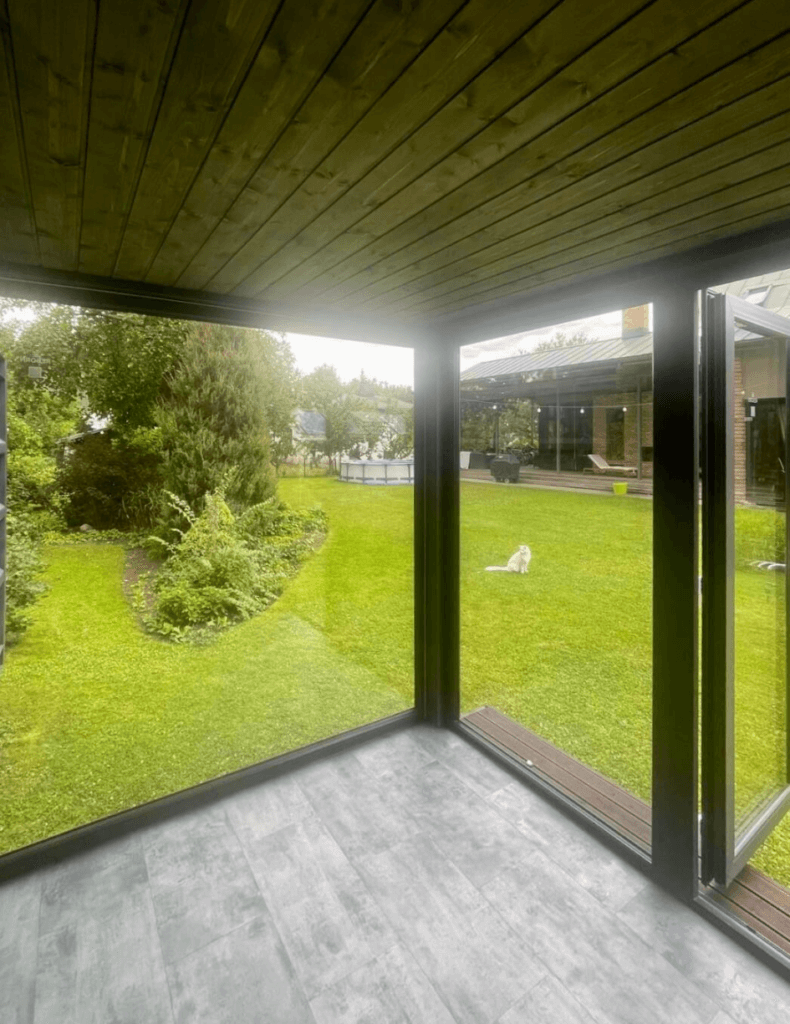

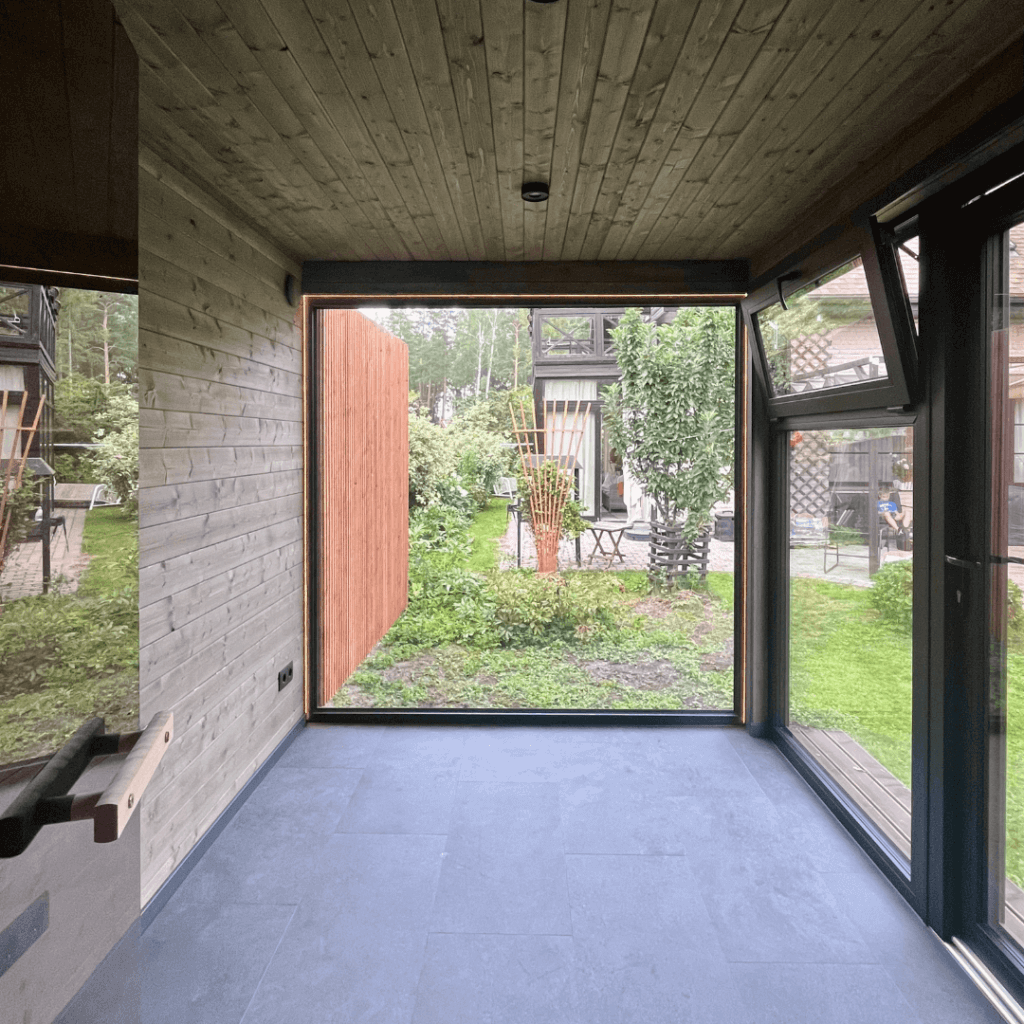

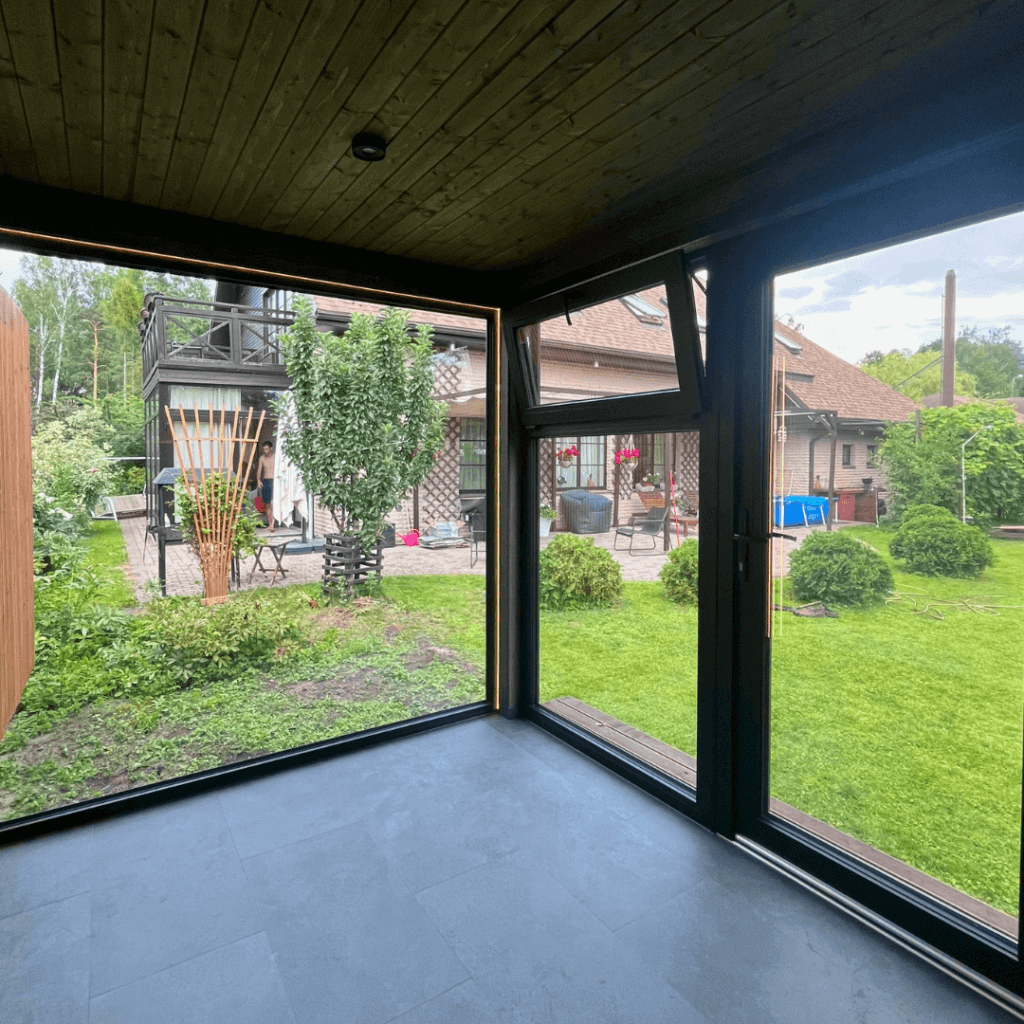

Up to eight persons at a time can find a seat on the sauna benches, or alternatively two persons can comfortably fit on the benches laying down in full length. The anteroom is roomy enough to lounge in between the heating sessions.

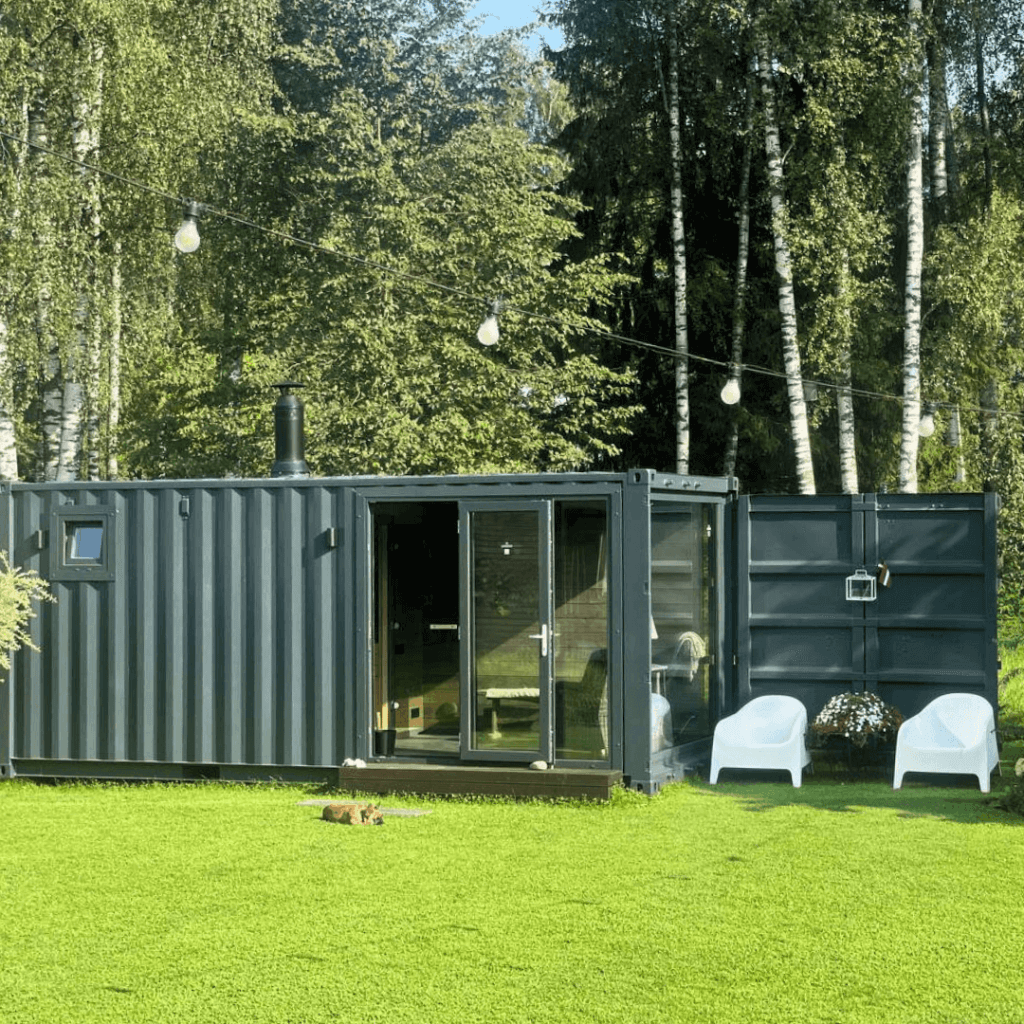

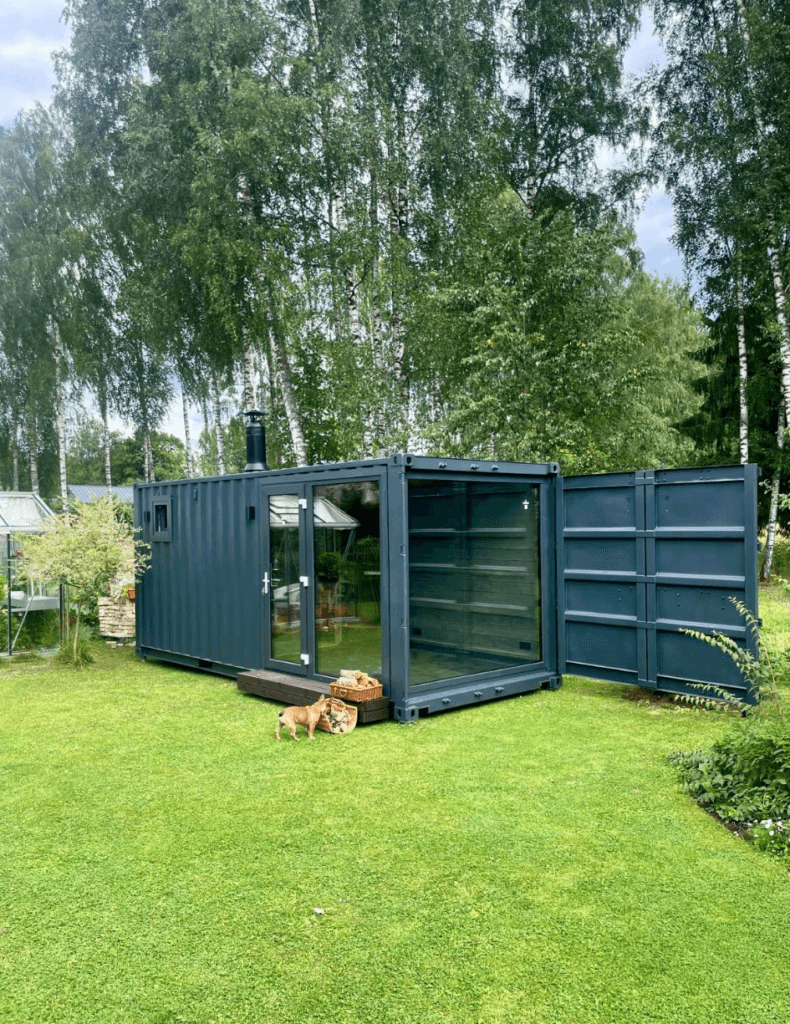

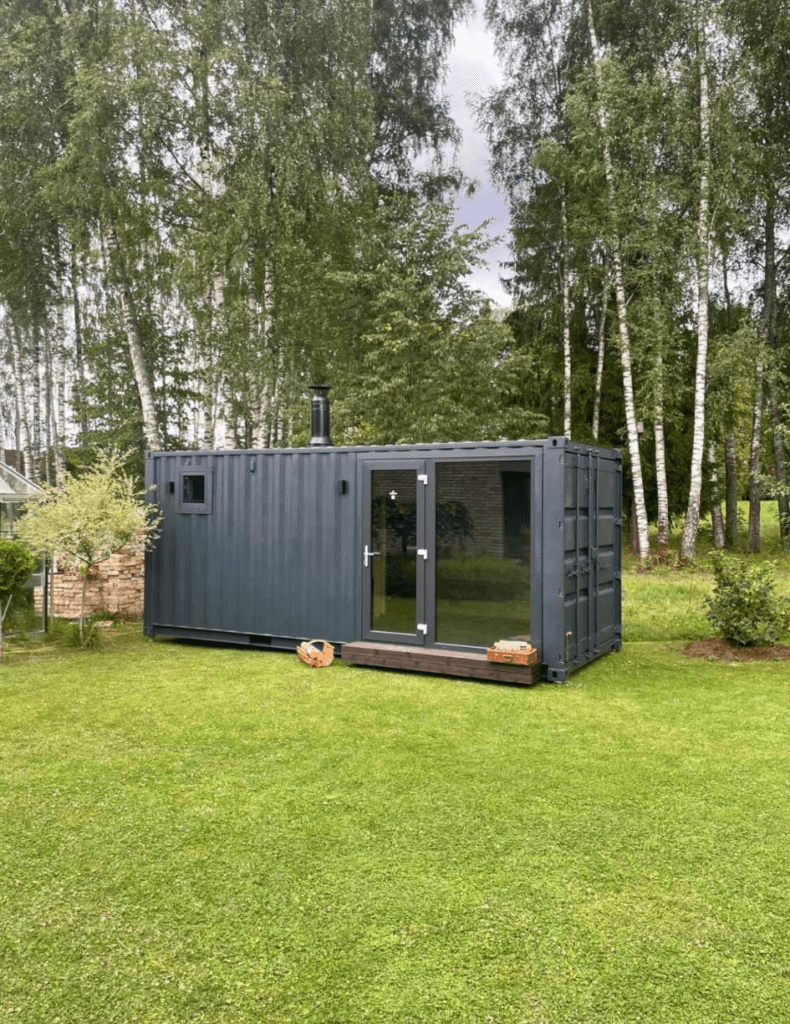

The original doors of the shipping container have been preserved for this project, joined together and covered with decorative wood trim from one side. This functional door panel is useful when you don’t want to be visible from the outside at night (through the large window without the door).

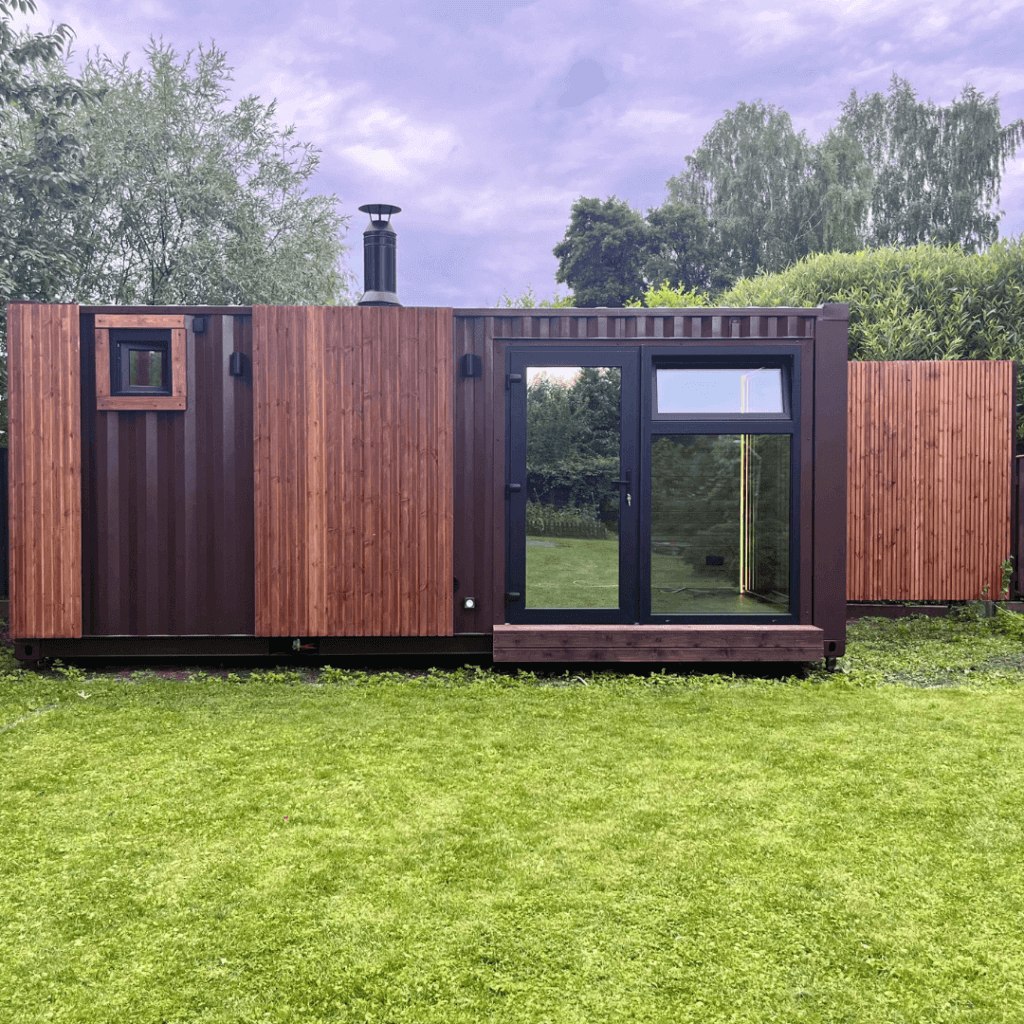

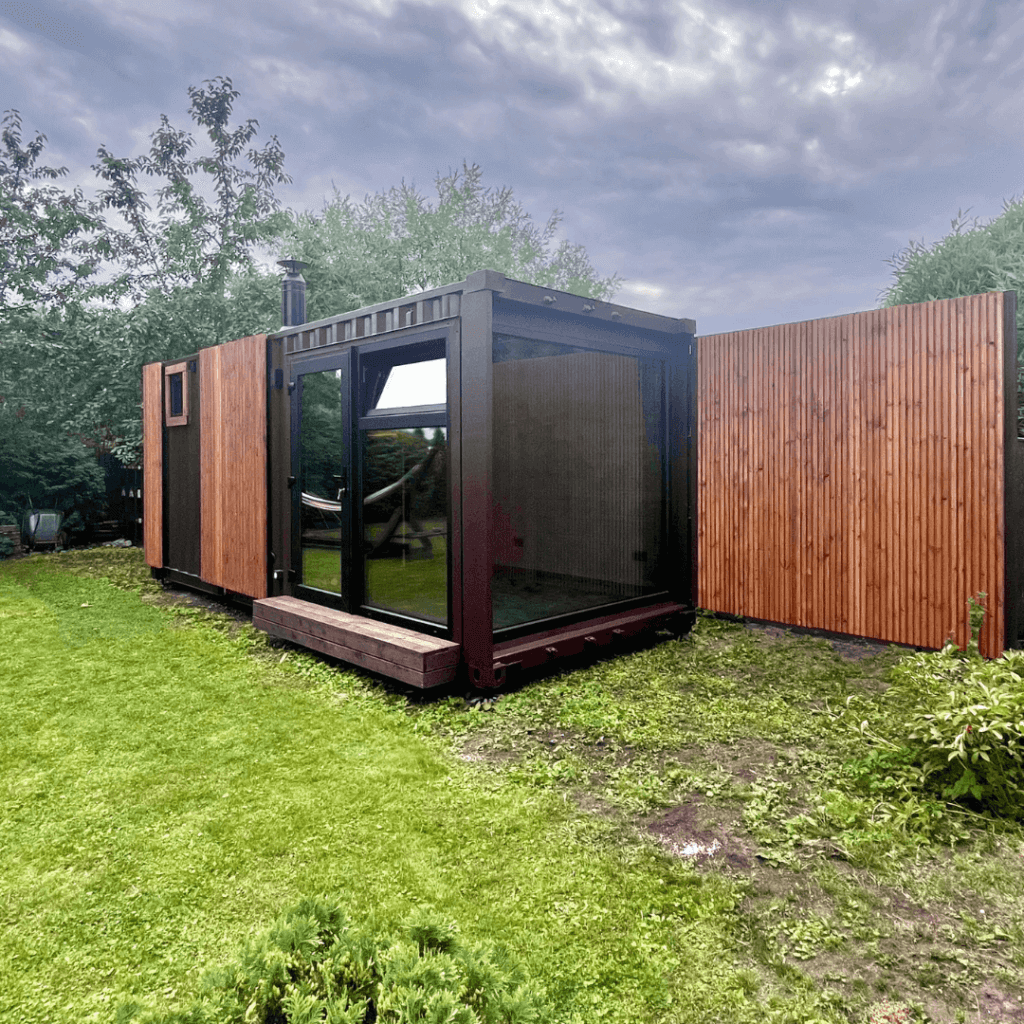

 Each REBORN building is based on a shipping container – so you can be sure that it won’t lose stability or integrity after the journey from the factory to its new home.

TECHNICAL SPECIFICATION OF THE SAUNA

Floor area14.7 m2
Anteroom floor area (internal)5.9 m2
Sauna room floor area (internal)6.2 m2
Load-bearing structureShipping container frame
External finishMetal with wood elements
Power supply1 phase (220V)
Dimensions of the sauna room275 x 215cm (length x width)
Dimensions of the anteroom290 x 215cm (length x width)
Materials used for the sauna room (walls and ceiling)Tongue-and-groove alder planks
Materials used for the sauna room (floor)Ceramic tiles
Anteroom materialsFir tongue and groove planks (wall and ceiling), vinyl (floor)
Wall heat insulation50 – 85mm, closed-pore polyurethane system*
Heat insulation for the sauna room floor30mm, Finnfoam FL300PX
Heat insulation for the anteroom floor50mm, Finnfoam FL300PX
Ceiling heat insulation100mm, closed-pore polyurethane system
Sauna heater typeWood stove
Sauna heater modelOzols 25m3
Volume of the firewood heated water boiler60l
Electric water heater50l
ShowerYes (in the sauna room)
Material for the benchesBlack alder boards
Dimensions of upper bench215 x 80cm (length x width)
Dimensions of lower bench195 x 60cm (length x width)
Cold water inletYes
Interior lightingLED
External lighting6 gab.
Electricity sockets5 pcs
VentilationYes
Anteroom window with a leafBrugmann 5 chamber window profile system, equipped with Roto fittings, selective coating for the glazing units, glazing unit thickness 44mm,Thermix frame. Window dimensions with frame 140 x 220 cm, leaf dimensions 80 x 220 cm
Large anteroom window without the doorBrugmann 5 chamber window profile system, equipped with Roto fittings, selective coating for the glazing units, glazing unit thickness 44mm, Thermix frame. Window dimensions with frame 185 x 60 cm
Ventilation window of sauna roomBrugmann 5 chamber window profile system, equipped with Roto fittings, selective coating for the glazing units, glazing unit thickness, window dimensions with frame 52 x 52 cm

* The external wall is a profiled shipping container wall (profile height 30 mm).
