Checkpoint module
The REBORN checkpoint module is a finished building for access control at events, factories and ports, with a waiting room and mirror glass windows.
- 29.7 m² external area
- One-way windows
- Insulated – all year round
- Workplace and waiting room
Checkpoint module price

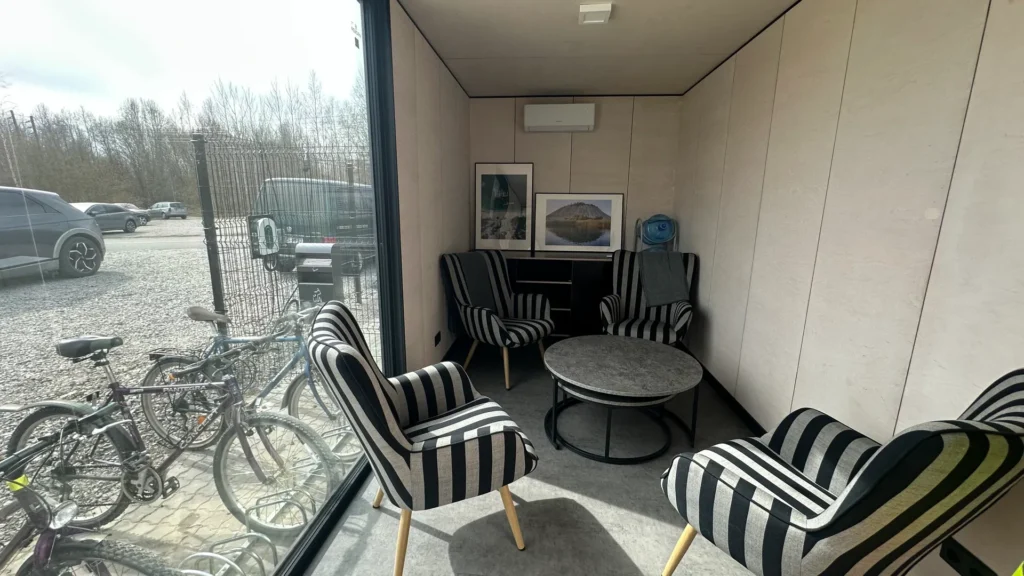

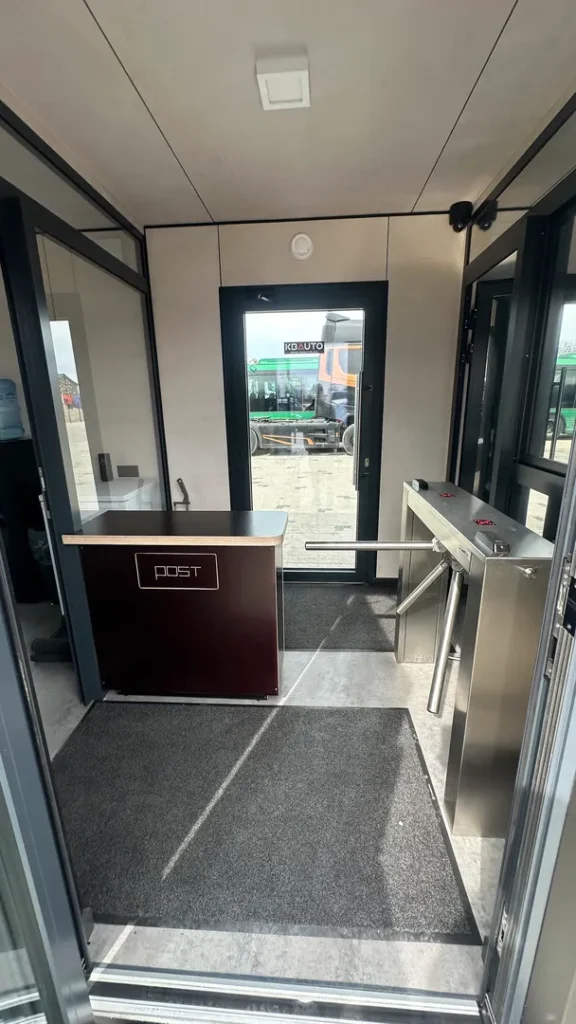

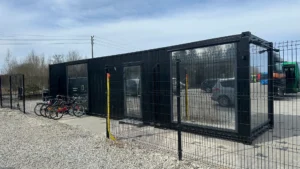

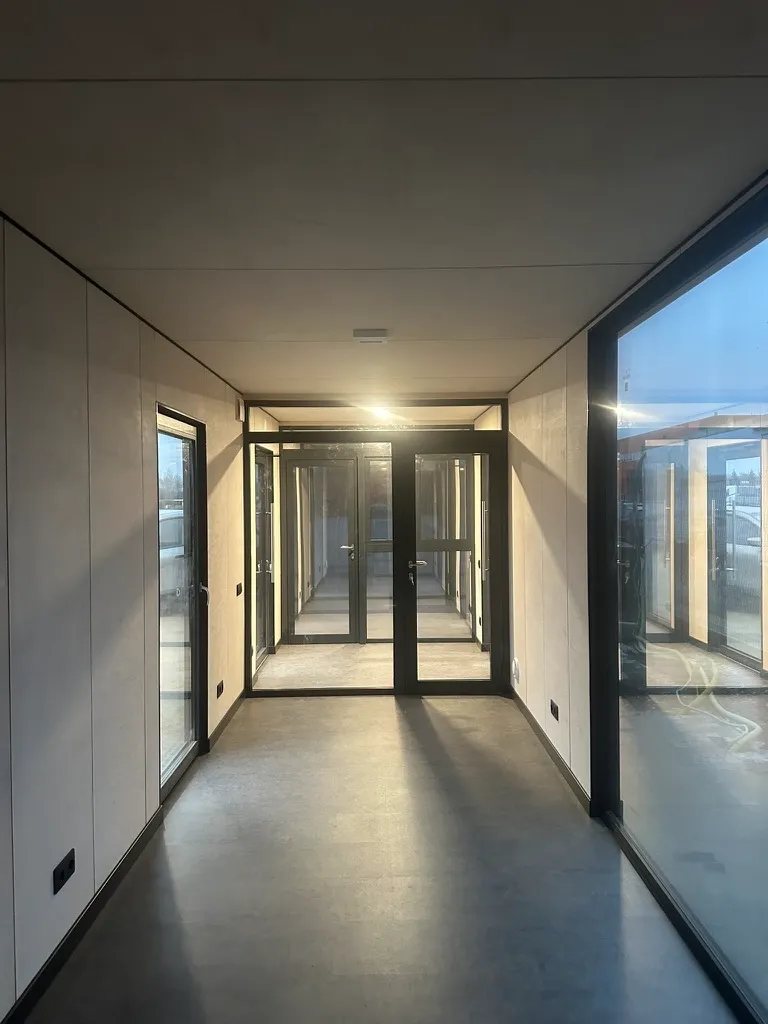

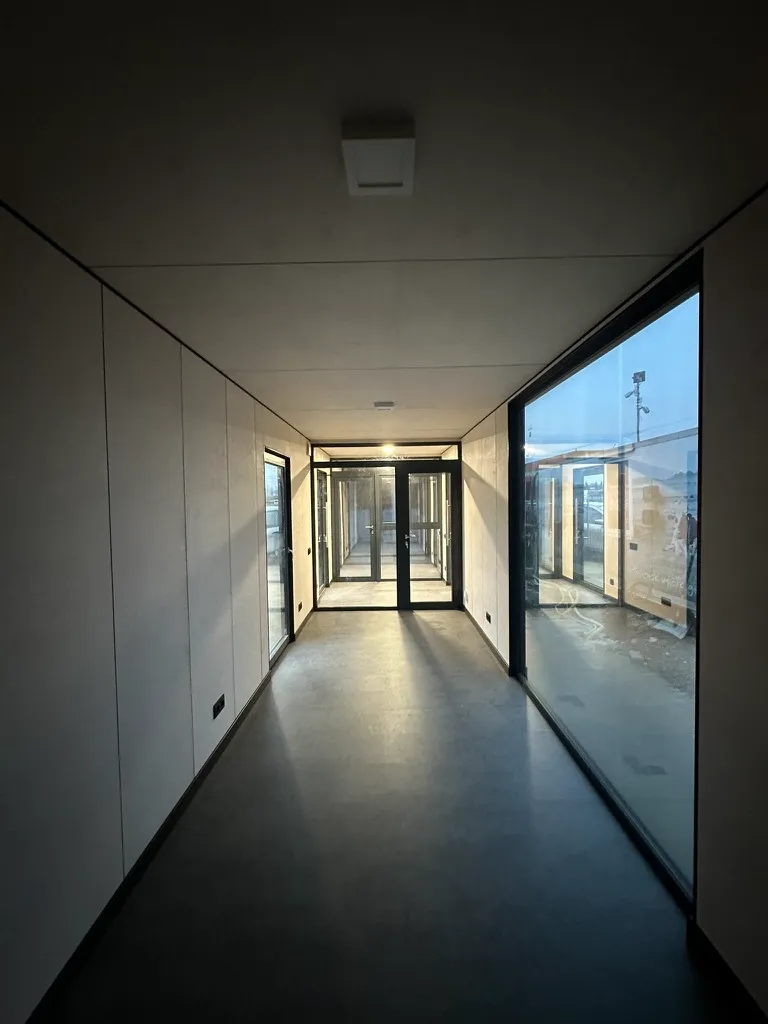

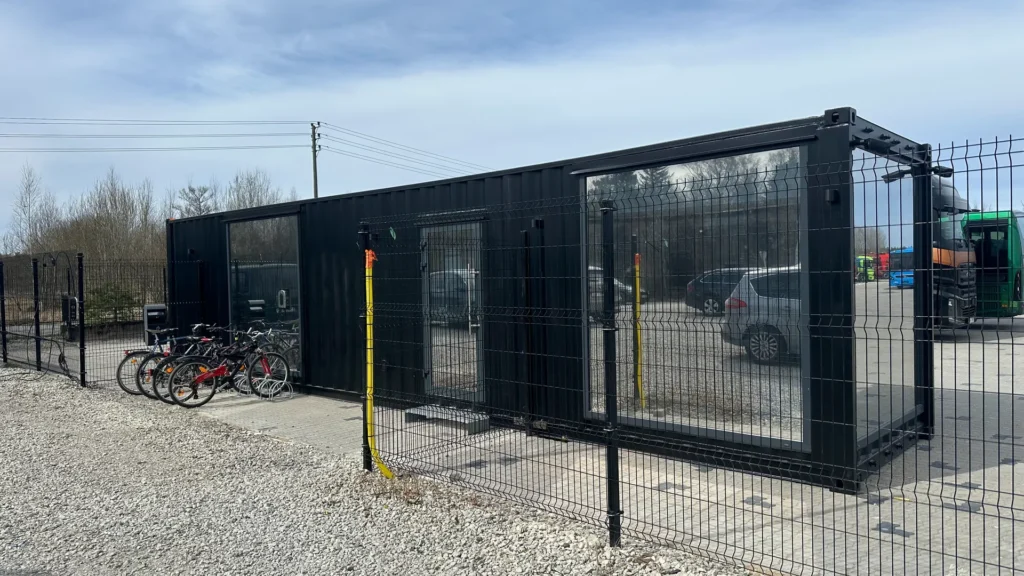

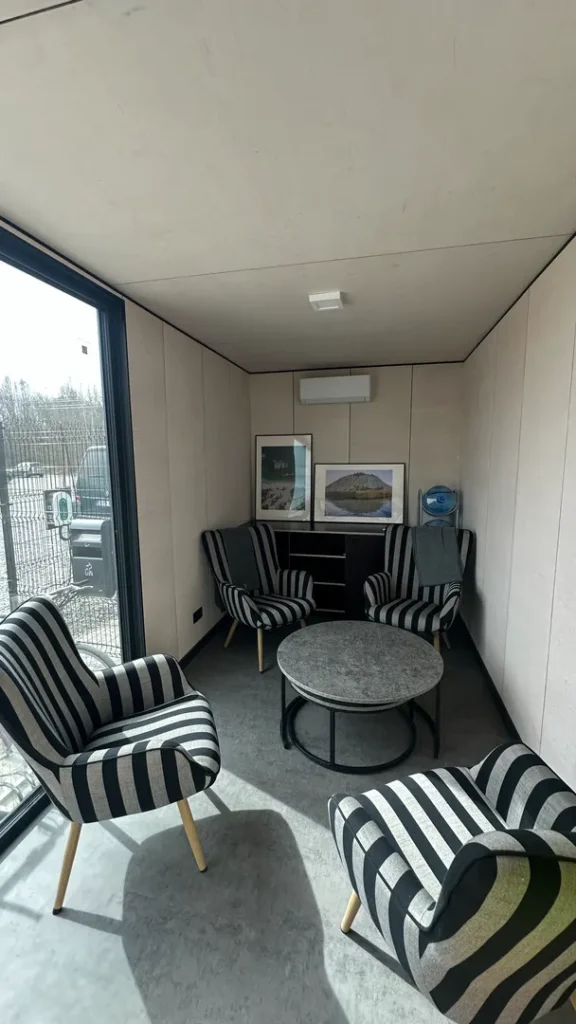

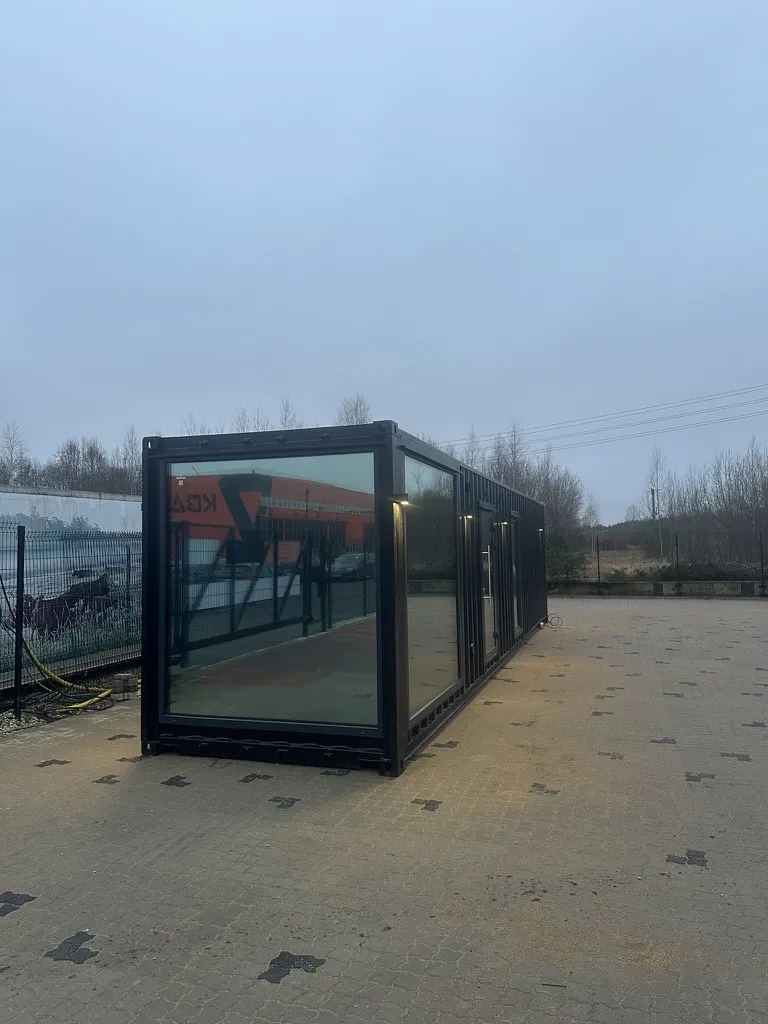

Based on a shipping container frame, the REBORN checkpoint module is a finished building for controlling access to a site and for receiving visitors. It brings together a waiting room for visitors, a separate room for the operator or guard, and a corridor that connects them. The module works as a permanent post at a factory or logistics gate, and just as well as a temporary setup for events, concerts, ports, guarded sites and office complexes.

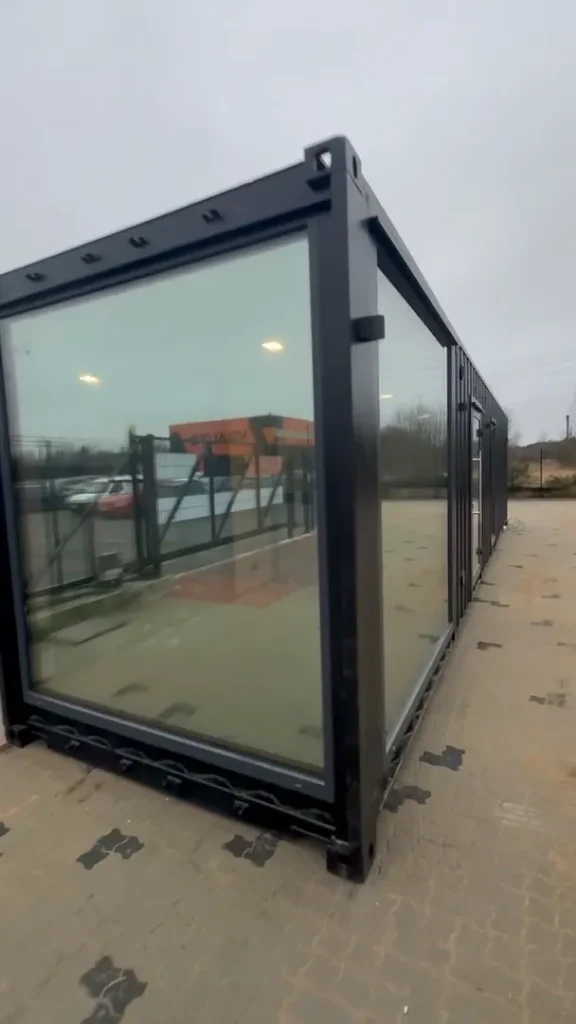

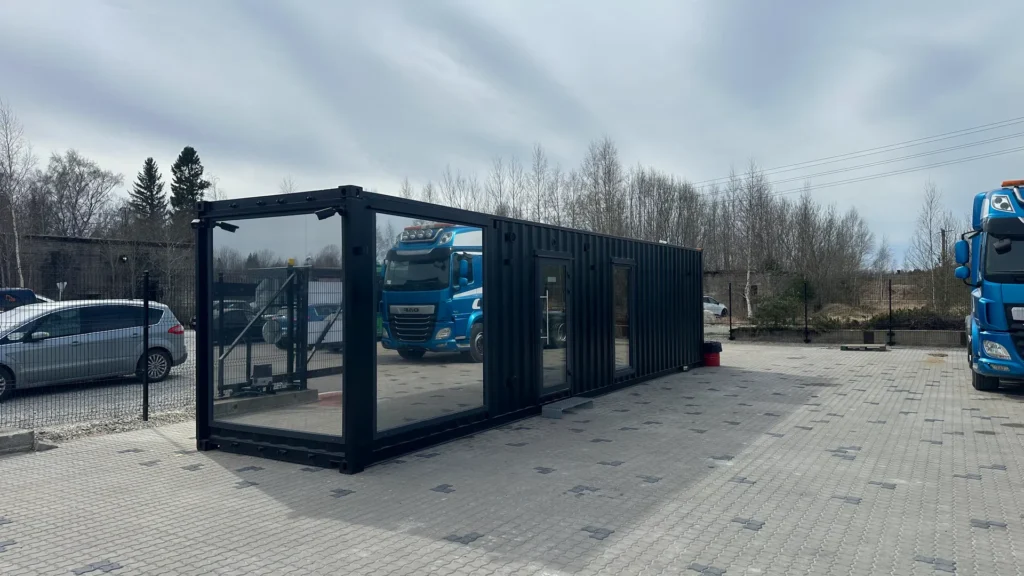

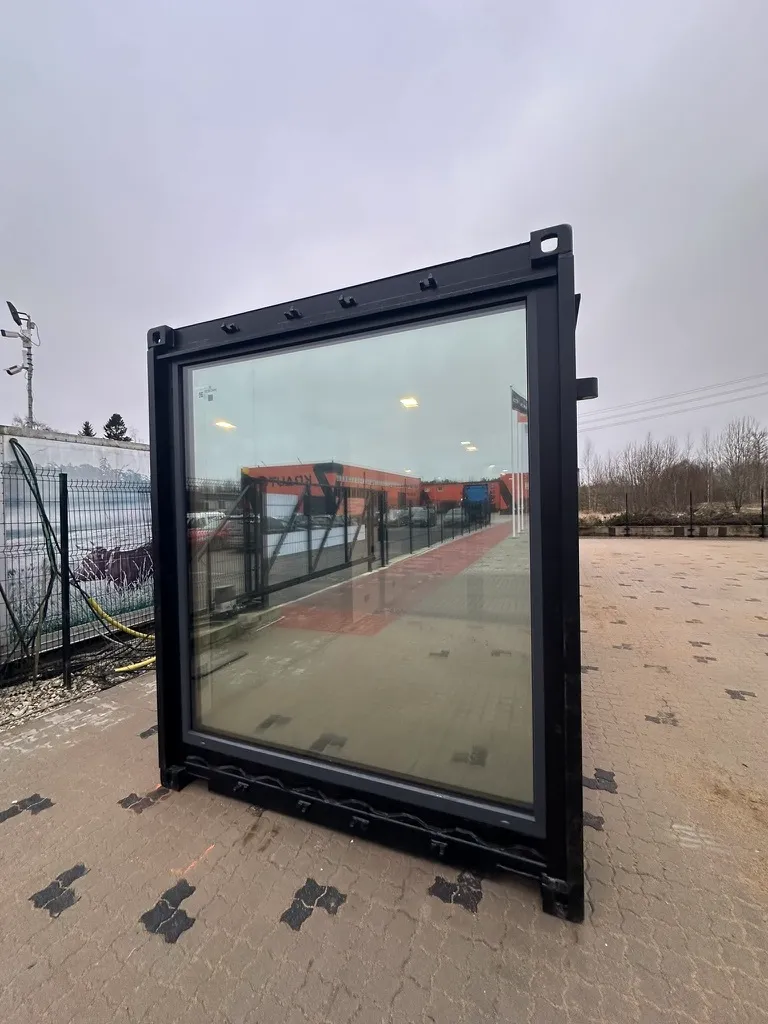

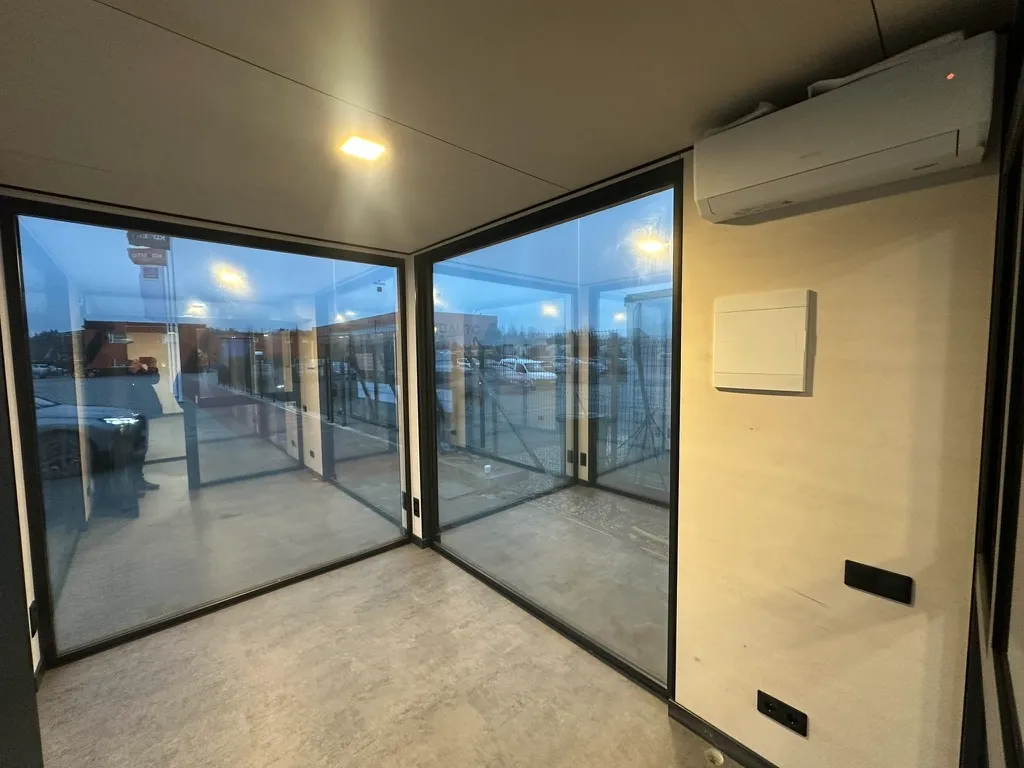

The windows and doors have mirror glazing with a reflective film that faces outward. This lets the operator watch the whole surroundings and the waiting room, while from outside the inside is not visible.
The walls are insulated with closed cell polyurethane, and a heat pump handles both heating and cooling, so the post stays usable throughout the year. Heat recovery units in the waiting room and the security room keep the air fresh. The module also has exterior lights that switch on automatically in the evening, once it gets dark.

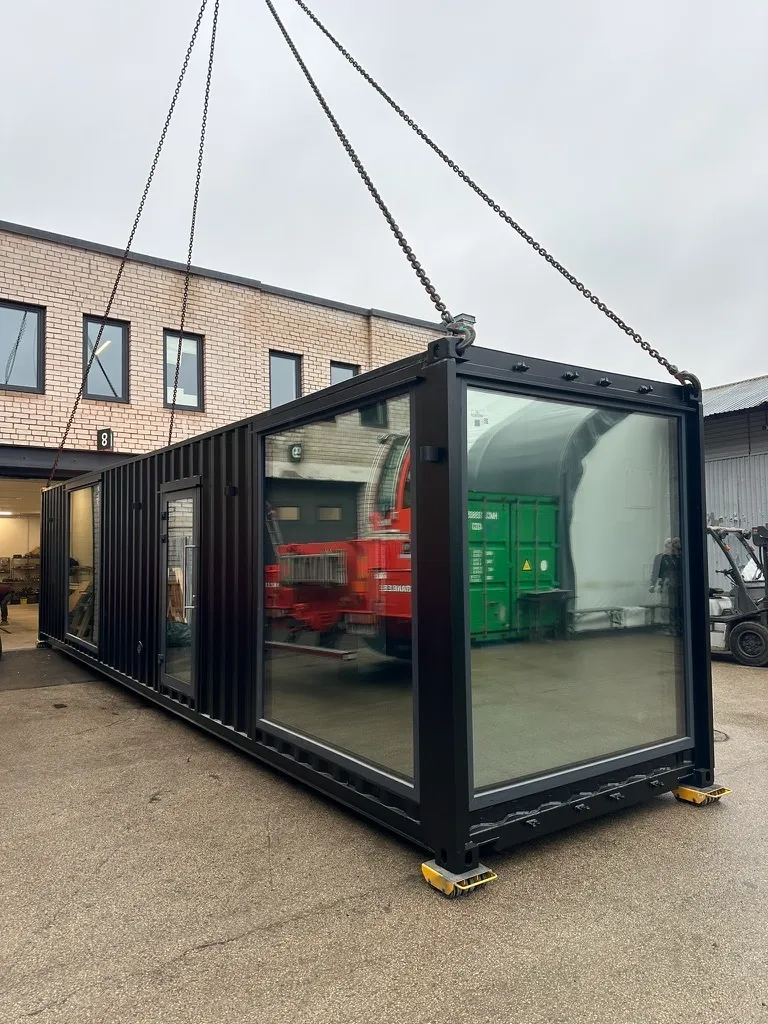

The steel frame keeps the building stable and intact even after the journey from the factory to the installation site. No foundations are needed, because the module is placed on concrete blocks, and it can be moved if the control point changes over time.

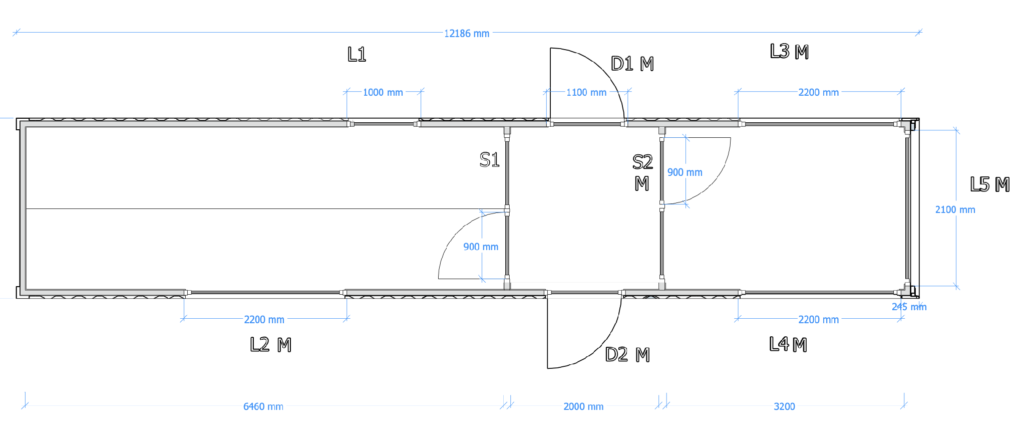

Dimensions from the technical specification. Full list below.
Technical specification
| Load bearing structure | Shipping container frame (40 ft, high cube) |
|---|---|
| External finishing material | Metal, painted in RAL7016 |
| Power supply | 1 phase |
| Total area (external) | 29.7 m² |
| Waiting room dimensions (internal) | 646 x 215 cm (length x width) |
| Security room dimensions (internal) | 320 x 215 cm (length x width) |
| Corridor dimensions (internal) | 200 x 215 cm (length x width) |
| Interior finishing materials (walls and ceiling) | Painted birch plywood panels |
| Flooring (all rooms) | Vinyl |
| Wall insulation | 60 to 90 mm, closed cell polyurethane system* |
| Ceiling insulation | 100 mm, closed cell polyurethane system |
| Floor insulation | 50 mm, Finnfoam FL300PX |

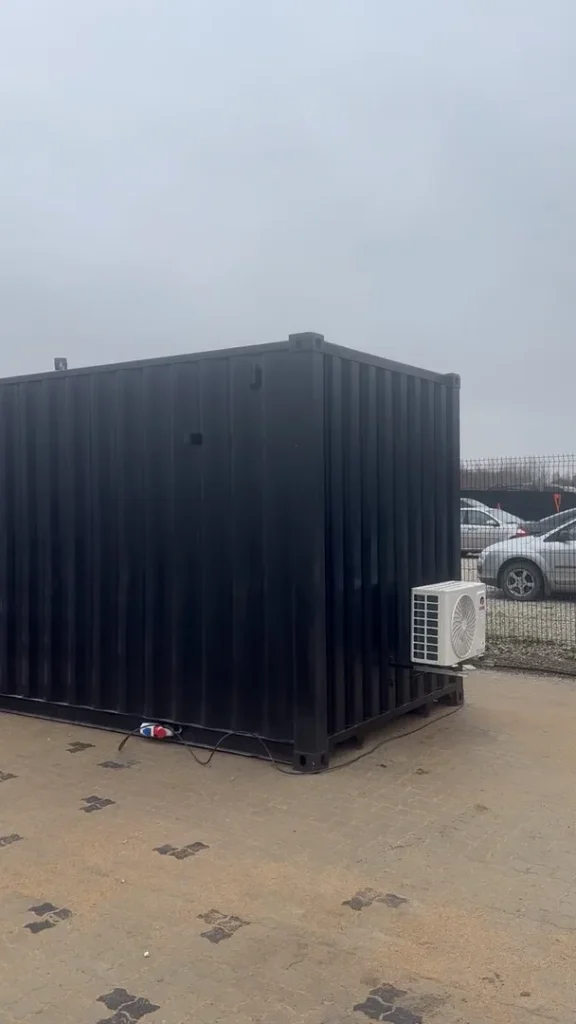

| Heating | Electric heat pump with one outdoor unit and two indoor units |
| Electrical installation | Fully completed with fixtures, sockets, switches, fuse box and external connection (1 phase) |
| Ventilation | One heat recovery unit in the waiting room and one in the security room |
| External lighting | 8 wall mounted fixtures with a twilight sensor |
| Internal lighting, waiting room | 3 ceiling LED fixtures |
| Internal lighting, security room | 2 ceiling LED fixtures |
| Internal lighting, corridor | 2 ceiling LED fixtures |
| Sockets, waiting room | 8 pcs |
| Sockets, security room | 8 pcs |

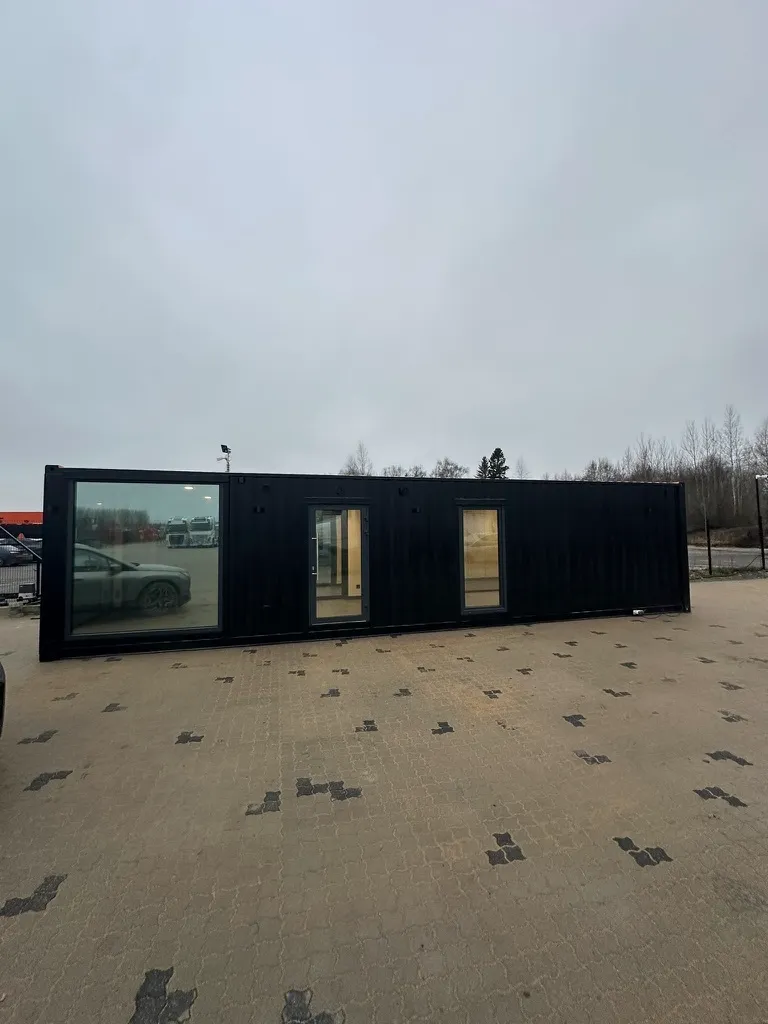

| Windows, waiting room | One window 245 x 220 cm and two tilt windows 210 x 100 cm. REHAU Synego profile, Roto fittings, selective coating with mirror effect, 44 mm glazing, Thermix frame. Reflective film facing outward on the glass for one way visibility |
| Windows, security room | Two windows 245 x 220 cm and one window 245 x 210 cm. REHAU Synego profile, Roto fittings, selective coating with mirror effect, 44 mm glazing, Thermix frame. Reflective film facing outward on the glass for one way visibility |

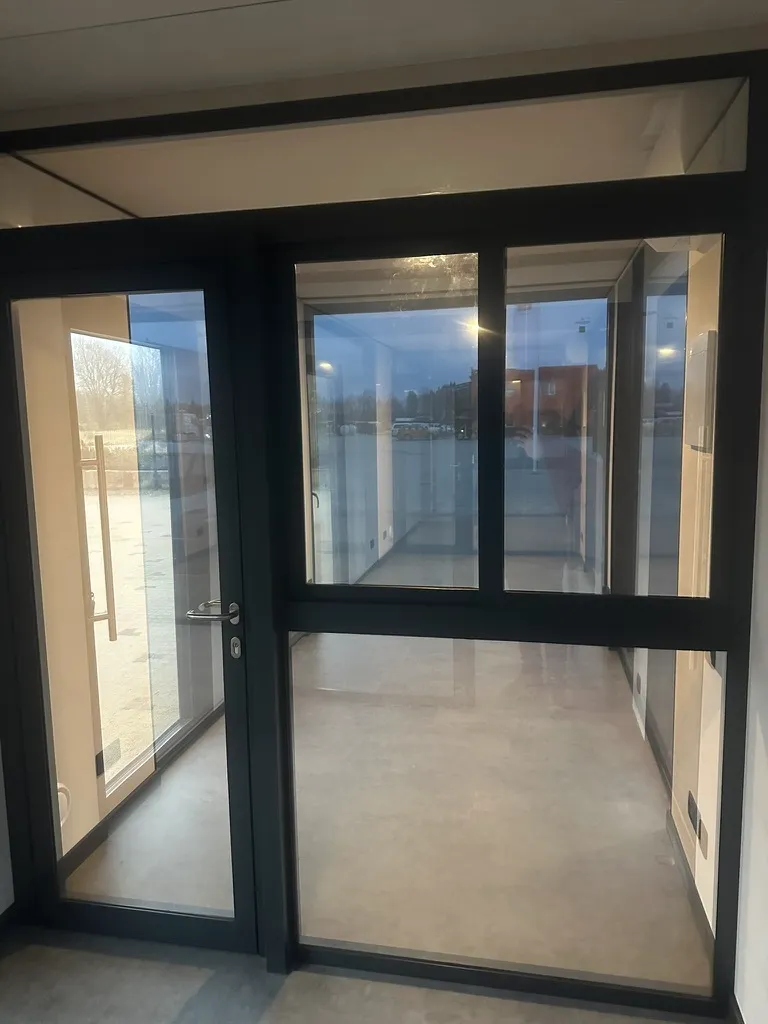

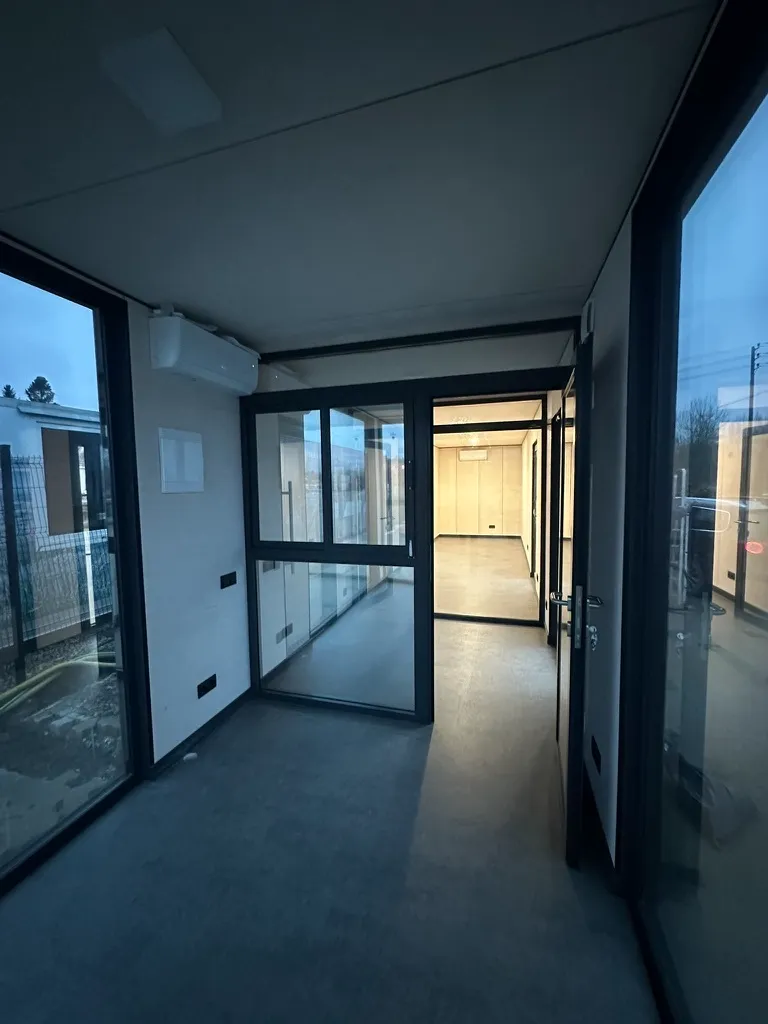

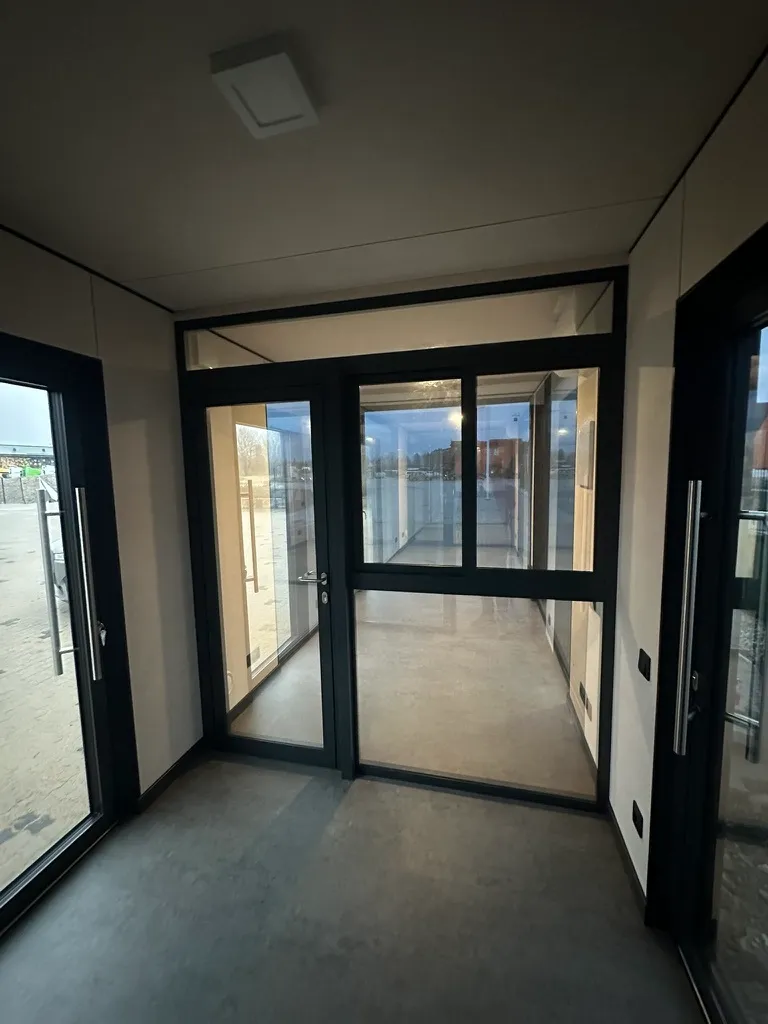

| Partitions between rooms | Glazed partition with glazed entrance doors, REHAU Synego AD profile, Roto fittings, selective coating with mirror effect, 44 mm glazing, Thermix frame. Two partitions 245 x 215 cm (one regular glass, one mirror glass) |

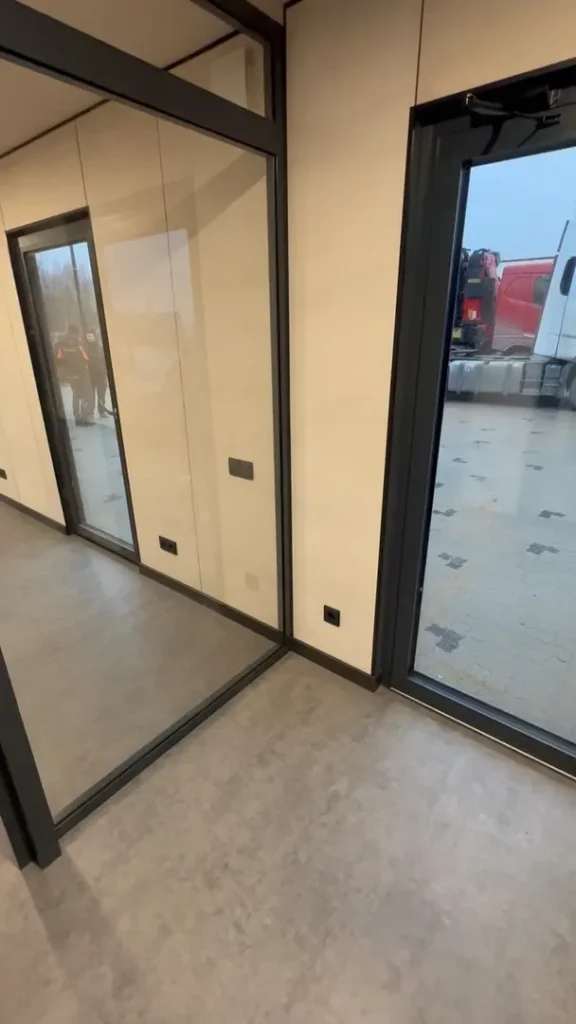

| Entrance doors | Aluminium doors with mirror glass units, 100 x 210 cm, two doors (one regular glass, one mirror glass). Reflective film facing outward on the glass for one way visibility |
* The external wall is a profiled shipping container wall (profile height 30 mm)
